Technical data
The kit includes:

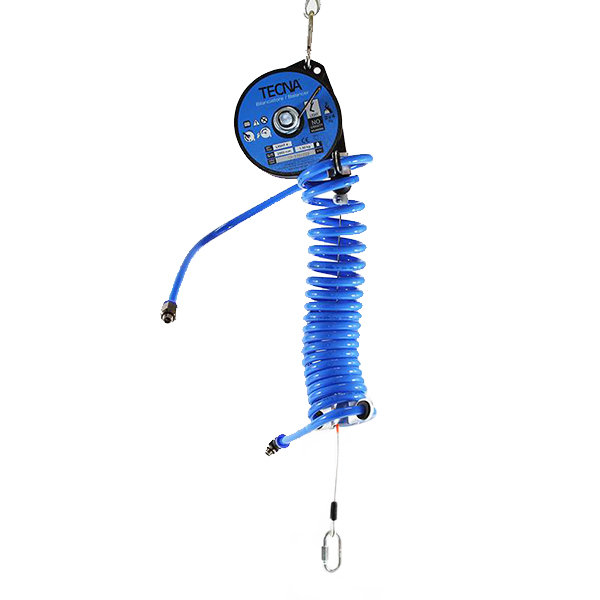

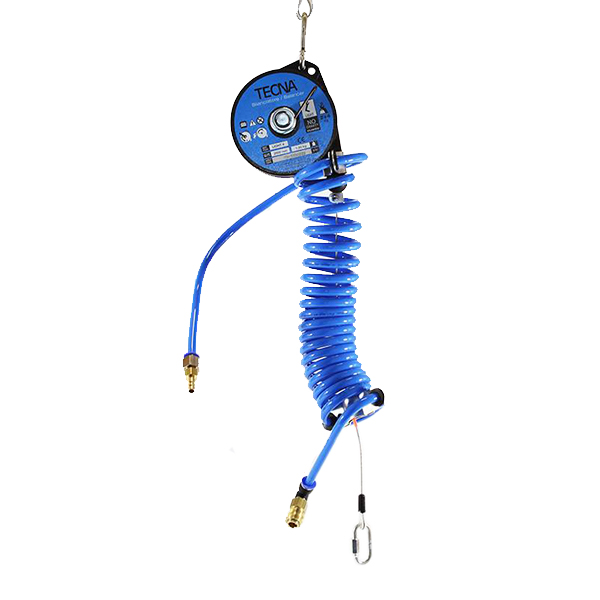

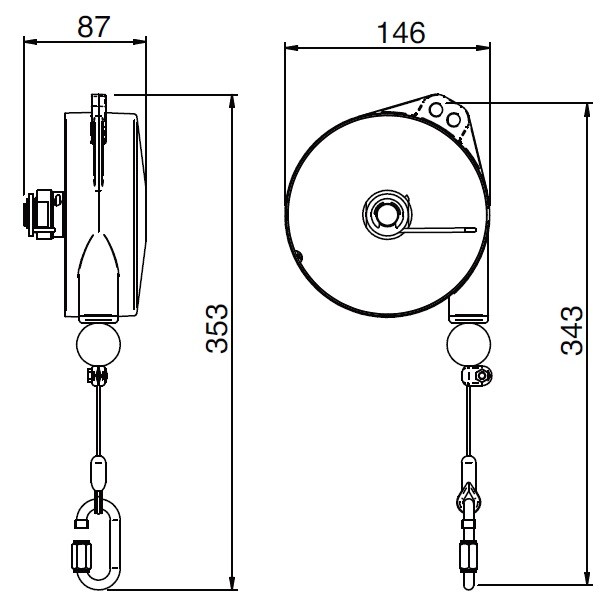

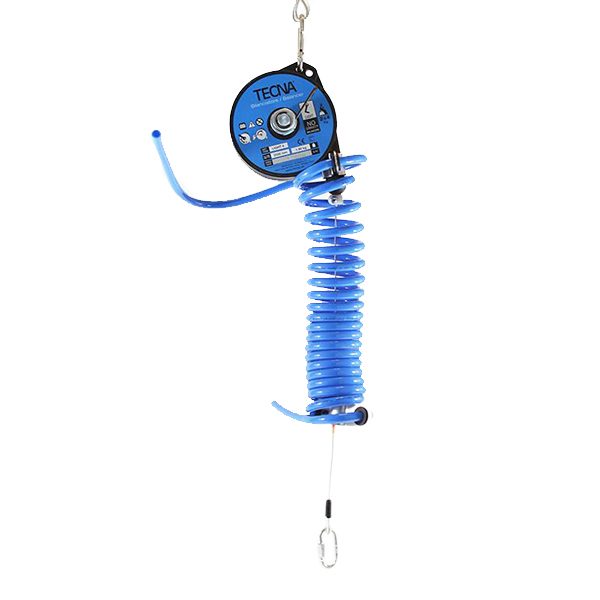

1. LIGHT.4 TECNA cable balancer 2 - 4 kg 2500 mm
Technical data:
- load capacity from 2 - 4 kg
- wire length 2500 mm
- device weight: 1.90 kg
- aluminium alloy housing, compact and highly resistant to accidental impacts
- adjustable working range of the cable
- stainless steel cable
- spring breakage protection in case of sudden jerking ( > 3 kg )
- cord coated with anti-abrasive material
- polyamide finish on the eyelet to prevent the hook from rubbing off

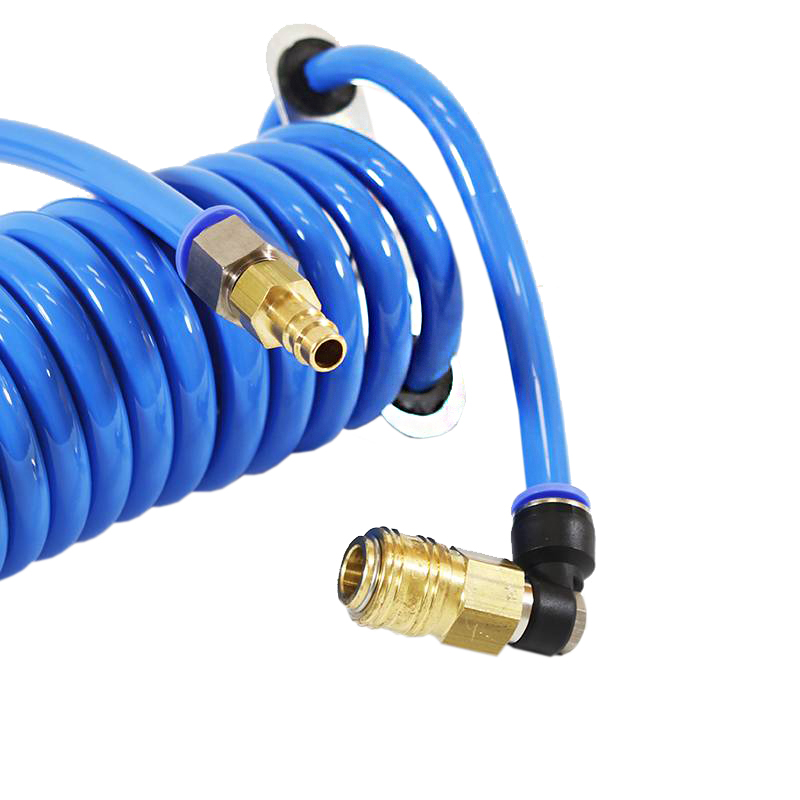

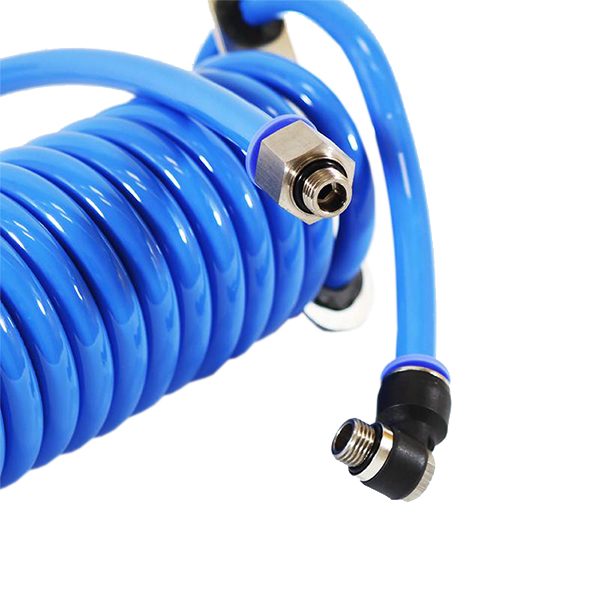

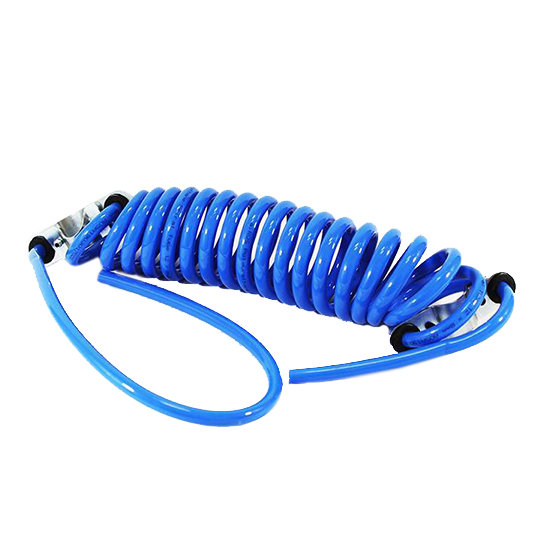

2. pneumatic handle for Tecna balancers P932X
( available to purchase separately -> HERE):
- model 9320; 9321; 9322; 9323
- Model Tecna Light 4; Light 6; Light 8
Handle specifications:
- air duct diameter: 12 x 8 mm
- cable length: 5 mb ( working length 80% )
- Outer diameter of spiral: 80 mm
- handle material: steel

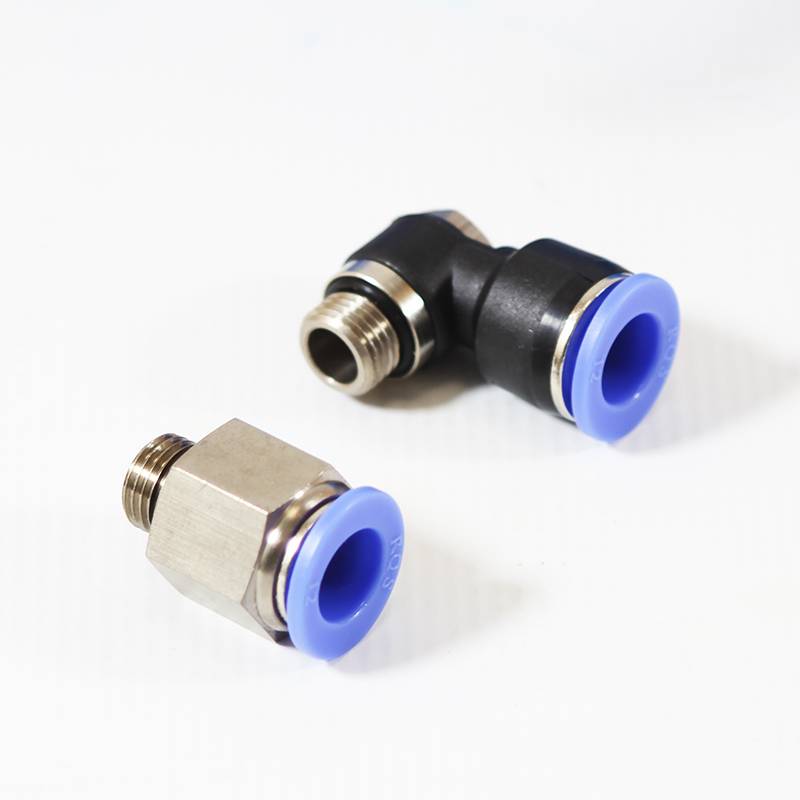

- Plug connectors 12 x 8 mm - 1/4″ ext. thread - (2 pcs.)

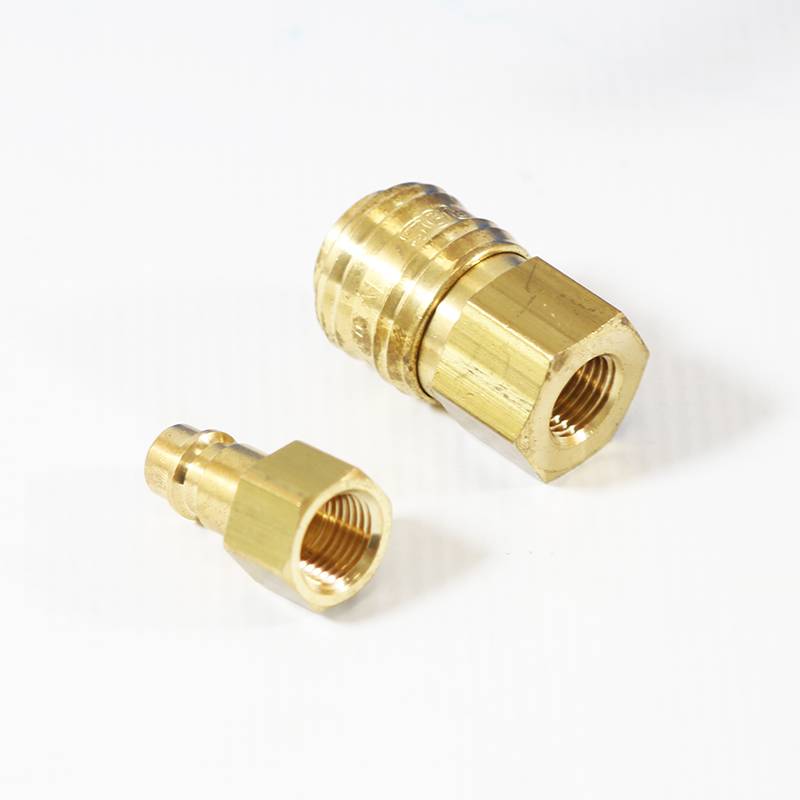

- 1/4-in. male thread (1 pc.) and 1/4-in. female thread (1 pc.)
- colour of snakes: light blue
- temperature range -20oC to +70oC
- working pressure at 23oC: 9 - 12 bar (depending on hose diameter)
- safety factor: 3 to 1
- working length: 80 - 90 % overall length
- length of straight sections: 10 cm / 50 cm
- Shore hardness: 95 A
